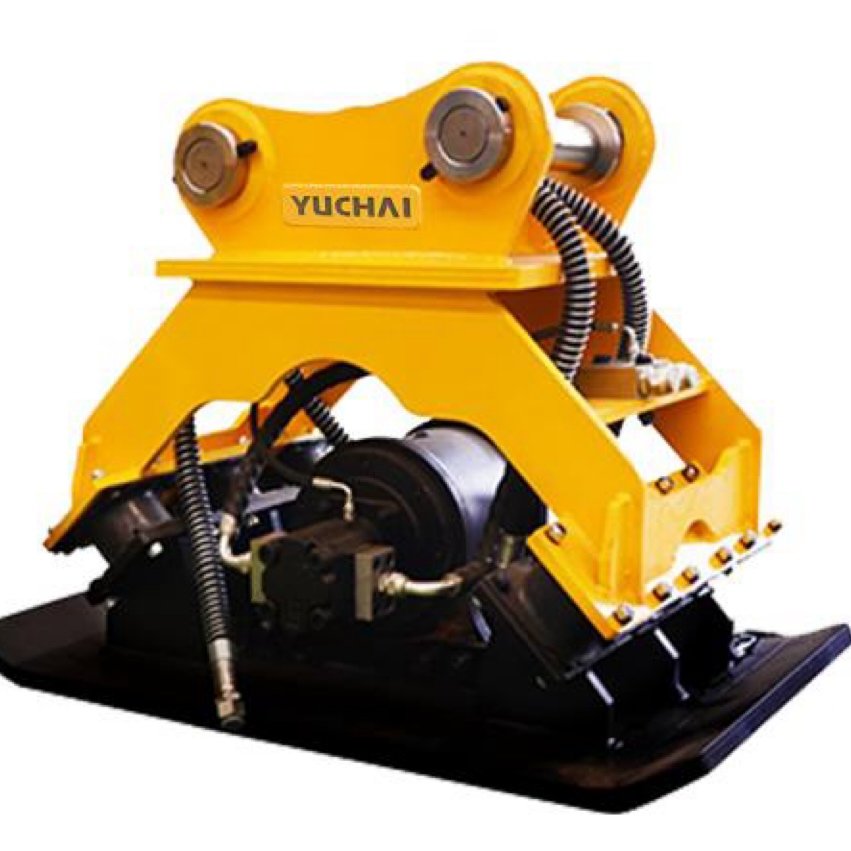

YUCHAI Hydraulic Plate Compactor

Hydraulic Plate Compactor, Yuchai
Applicable objects: It is suitable for compaction, pile driving and extraction, crushing and other operations in ditches, slopes, steps and complex terrains.
Product features:
◆ Made of Q355 manganese plate steel, with high strength and corrosion resistance.
◆ The pin shaft is made of 42CrMo alloy steel with built-in oil passages, featuring high strength and good toughness.
◆ The motor is an imported American hydraulic vibration motor, which is solid and durable.
◆ The bearings are imported German FAG bearings, featuring low noise, safety and reliability.
◆ The shock-absorbing block is made of South Korean Autox, featuring good toughness and wear resistance.

翻FEATURES
◆Longer lifetime of damper
Specially designed 45″inclined vibration-proof rubber minimizes shock power◆No pressure adjustment due to a high pressure generating motor
◆High quality hydraulic motor drives the drum assembly to provide large amplitude with giant vibration. Applicable to any position, such as horizon compaction, step compaction, bridge abutment, the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.DLK hydraulic compactor can also be used for pulling piles and broken when necessary.
