sany sy235h excavator offers a 23 t operating weight, 1.35 m³ bucket capacity, 128–133 kW Isuzu engine, 140 kN breakout, 107 kN arm force, and 5.6 km/h travel—delivering reliable, high‑power excavation.
sany sy235h excavator Overview

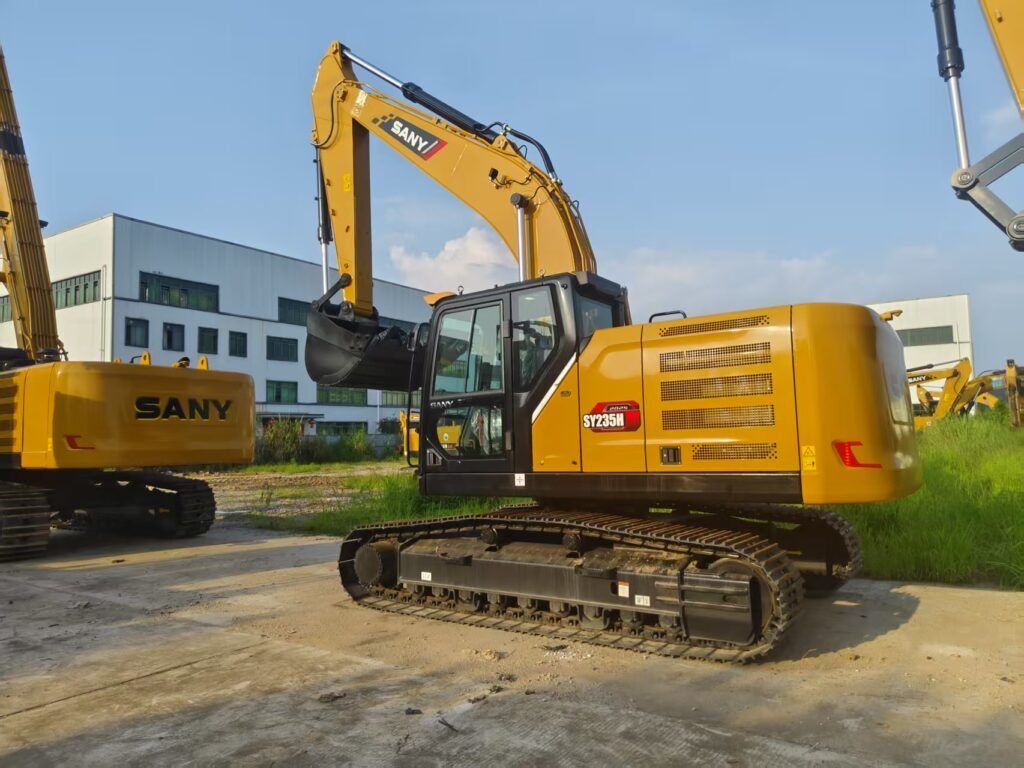

The sany sy235h excavator is a rugged 23‑ton class crawler excavator designed for heavy-duty applications such as construction, pipeline work, quarrying, and earthmoving. It is powered by a proven Isuzu 4HK1 engine, delivering 128–133 kW (171–178 hp) at 2,000–2,100 rpm and compliant with Tier IV/stage IIIA emission standards sanyglobal.com+13Mascus+13sinotrukafrica.com+13.
Equipped with a spacious 1.35 m³ bucket, the SY235H produces strong digging performance—approximately 140 kN bucket breakout force and 107 kN arm crowding force product.global-ce.com+4machplaza.com+4Alibaba+4. The machine supports a maximum digging depth of ~6.45 m, a reach of ~9.74 m, and digging height up to ~9.47 m Alibabaproduct.global-ce.com.
Application
The sany sy235h excavator is built for demanding excavation and loading tasks. Its 1.35 m³ bucket and 140 kN breakout force efficiently handle compacted soils, demolition debris, and stockpile loading. With a digging depth of 6.45 m and reach above 9.7 m, it is well-suited for utility trenching, site prep, and excavation in medium-to-large worksites.
Ideal for rental fleets and general contractors, SY235H supports attachments like hydraulic breakers, rakes, and grapples via auxiliary hydraulic circuits. Its default rotations and long-reach arm geometry increase flexibility when working against tight-loading structures. Urban or rural deployment is made easier with a compact tail swing and stable travel capability.product.global-ce.com+5Alibaba+5machplaza.com+5
Why Choose sany sy235h excavator
- Robust Power & Hydraulic Strength
Backed by Isuzu reliability, the engine-power combination drives hydraulic productivity and consistent torque, even under load-rich conditions.
- High Digging & Lifting Performance
With up to 140 kN bucket force and 107 kN arm force, the SY235H excels in tough digging and heavy lifting scenarios.
- Exceptional Reach & Mobile Stability
Outstanding digging height and reach support large trapezium trenches, while full-steel undercarriage provides traction even in rough terrain.
- Efficient Site Mobility
With 5.6 km/h travel speed, full-turn radius efficiency, and 70% grade climb capability, relocation across site zones is fast and confident.
- Simplified Maintenance & Support
Designed with Sany’s reinforced chassis, accessible service points, and parts redundancy ensures high uptime and lower maintenance cost.
Extended
The sany sy235h excavator combines rugged structural design with smart performance features, making it a dependable tool in construction and utility sectors. Powered by an Isuzu 4HK1 engine (128–133 kW), it provides stable torque through 11.5 rpm swing, enabling consistent performance across digging, loading, or lifting tasks. Its hydraulic system—optimized through Sany’s matching technology—offers smooth multi-mode operation and responsiveness in both heavy and light load applications.
Production-grade steel undercarriage components support long-term durability, with a ground pressure around 51 kPa minimizing site impact. Travel speed performance (5.6 km/h) and hill climbing (70%) enable on-site shifting without auxiliary units.
The 1.35 m³ bucket combined with strong breakout and crowding forces clears material rapidly. Its long-reach dimensions—maximum digging reach around 9,745 mm and height near 9,470 mm—support trenching and loading without repositioning—ideal for foundation and site cleaning applications.
Operator safety and comfort are advanced with caged platforms, intuitive joystick controls, and optional remote monitoring. Full steel and boltless components reduce vibration and noise while improving structural longevity.
Attachment support is flexible: auxiliary circuits facilitate breakers, shears, and thumbs. Quick coupler readiness speeds operator workflow. Maintenance intervals are extended, with ground-level filters and components for expedited checks.
From a total cost perspective, the SY235H blends reliability, versatility, and manageable operating costs. Its long service life, strong resale, and Sany’s global service network make it an ideal candidate for contractors and rental fleets.
